Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column

Xiamen BMS Group
Contact Now

Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column

Brand Name : BMS

Model Number : Custom Made

Certification : ISO9001/SGS/CE

Place of Origin : Xiamen,China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30set

Delivery Time : 60days

Packaging Details : Robust and reliable standard export packaging

Use : Shelf column

Name : Shelf column forming machine

Cutting blade material : Cr 12 Mov

Punching : According to requirements

Raw material : Low carbon steel,Galvanized steel,Q235,etc

Control system : PLC(GERMAN Brand)

Contact Now

Custom Made Servo motor drive Storage Shelf Rack Column Roll Forming Machine

Technical parameter:
Material thickness:1.5-2.5mm
Material: Low carbon steel, Galvanized steel, Q235, etc.
Coil width:240mm.
Working speed:6~10M/Min.
Motor:15KW+4KW+3KW+7.5KW+2.2KW+3KW;
Weight:17000kg;

Dimension:24000 x 1500 x 2000mm

Decoiler parameter:

Power:unpower or Hydraulic with press arm

Weight:3Tons

Max. feeding width: 500mm, coil ID range 508mm±30mm

Structure Independent Free Stander Structure
Main manufacture material Roller made for GCr15, the shaft made for 45#steel, the machine base frame made for A3 Whole Welded steel plate
Craft Heat treatment, CNC Precision, Quenching, and tempering,Hard chrome plating

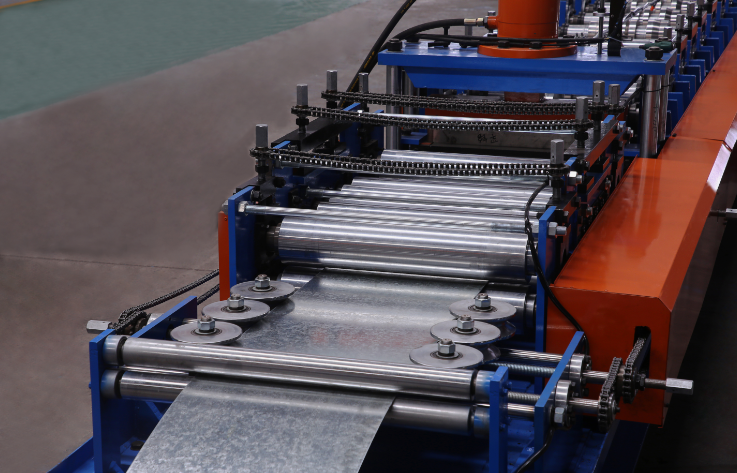

Leveling/servo feeding / pre-puching equipment:

Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column

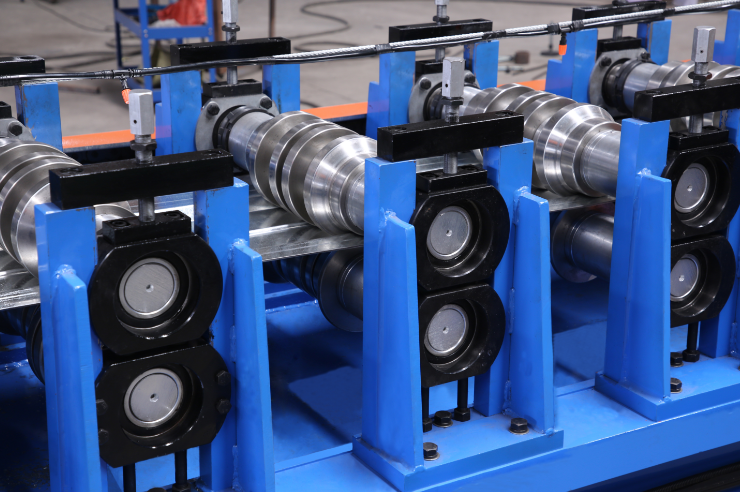

Roller Forming Parts:

Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
