American Type Hat Channel and U Channel 2-in-1 Roll Forming Machine With Auto PLC System
Profile description
| ITEM | HAT CHANNEL | U CHANNEL |
| Coil width | 139.70mm | 139.70mm |
| Thickness | 1.2mm | 1.2mm |
| Material yield strength | 235-400Mpa | 235-400Mpa |
| Applicable material | Galvanized sheet | Galvanized sheet |
Machine component
1)Hydraulic Decoiler(Double head)
Automatic control steel coil inner bore shrinkage
Can be rotated 180 °
Max. feeding width: 300mm, coil ID range 490m-580mm
Capacity: Max. 3.0Ton×2
2) Cold Rolling Mill:
With feeding material guide, body frame made from H type channel steel by welding;
Rollers manufactured from 60#, precision machined, hard Chrome Coated with thickness 0.04mm,surface with mirror
treatment(for longer life and anti-rust);
Shafts manufactured from 45#,Diameter=ф70mm,precision machined
Motor Driving,Gear chain transmission,about 14/steps(for Hat profile)/12steps(for U channel) to form
Main Motor=7.5KW (2 machines use same motor,switch through clutch)
Frequency speed control
Forming speed approx.20m/min

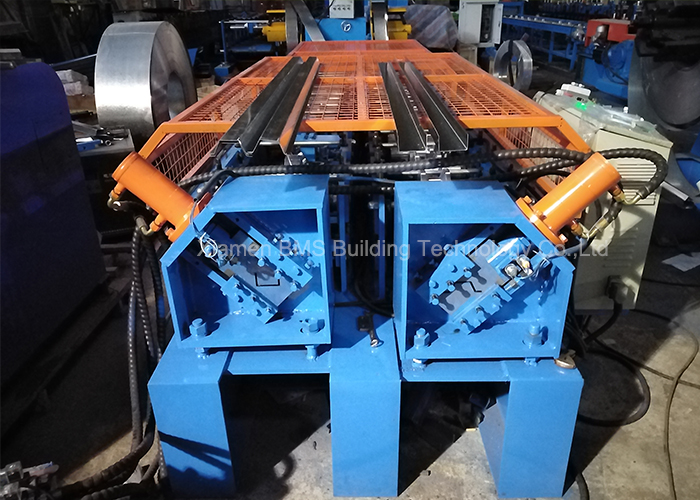

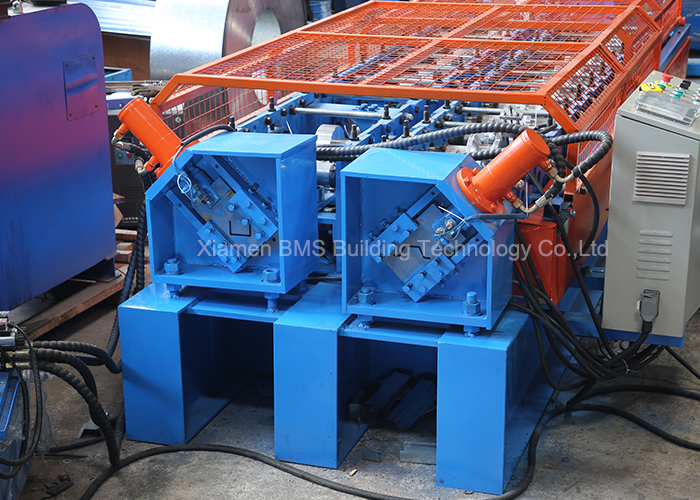

3) Hydraulic Cutting device:
Cutters frame made from high quality steel plate by welding
Post-cutting, stop to cutting
hydraulic motor: 5.5KW, Hydraulic pressure range: 12Mpa
Cutting tool material: Cr12, Heat treatment to HRC58-62 degree
4) PLC Control System
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
PLC: Simens (German brand)
Inverter: Siemens (German brand)
Touch Screen: Siemens (German brand)
Encoder: OMRON (Japan brand)
Cut-to-length tolerance≤±1mm
Control Voltage 24V
5)Exit Rack Un-powered,3m,two units with rollers for easy movement
