Material Custom Punching Rewinder With Independent Punch And Hydraulic Unloader

Brand Name : BMS

Model Number : Punching machine and unloader machine

Certification : Iso9001

Place of Origin : Xiamen，China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 240set/year

Delivery Time : 55-75days

Packaging Details : Used for 40HQ shipping cover dust-proof plastic film.

Raw material : Galvanized sheet/HRC/CRC with yield strength G340-550

Punching press : 120tons

Unloader : 5.5tons

Hydraulic power : 5.5kw

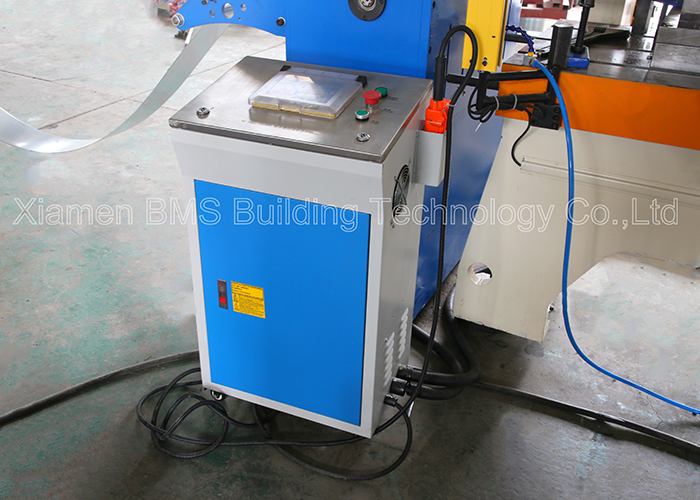

Control system : The Siemens PLC with 7" touch screen

Punching : Independent Punch

Thickness : 1.5-2.5mm

Body frame : H450 type steel

Contact Now

Custom Punching Rewinder with Independent Punch and Hydraulic Unloader For Material

Work Flow:

Hydraulic decoiler→Straightening device→Puncher device→Hydraulic cutter→Exit Rack

Material:

Material Thickness:1.5mm-2.5mm

Testing material thickness:1.5mm

Applicable material: Galvanized Steel(GI),cold-rolled coils, with yield strength 235-345Mpa

Machine Components

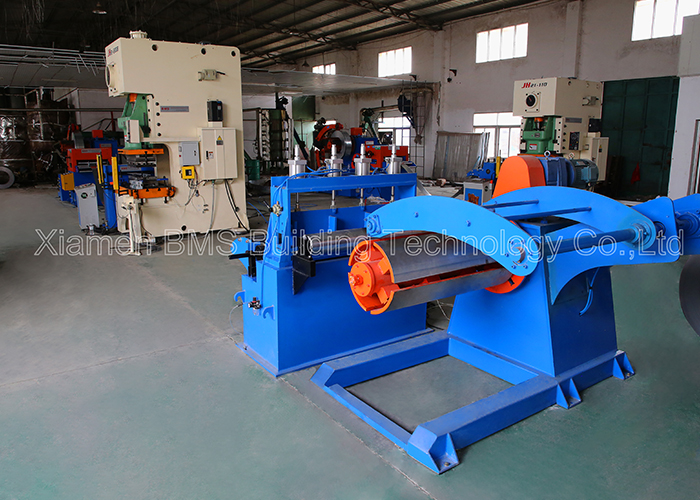

Manual Decoiler

No power, Manual control steel coil inner bore shrinkage and stop

Max.Feeding Width:500mm,Coil ID Range:508±30mm

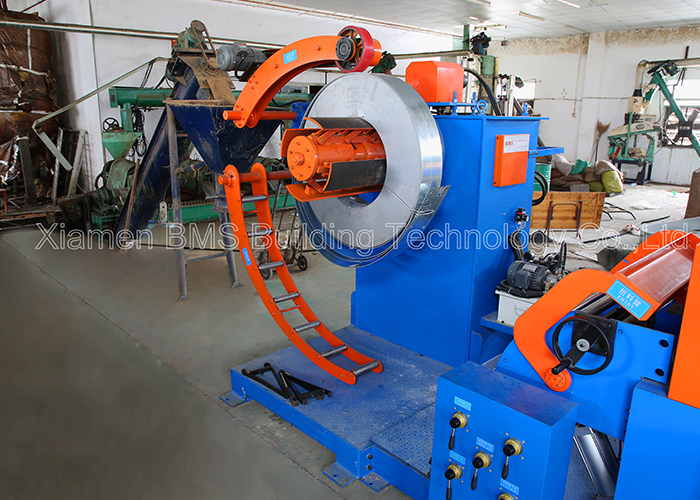

Optional type:5Tons Hydraulic Decoiler with pressing arm

Automatic control steel coil inner bore shrinkage and stop,

Max.feefing width: 600mm,Coil ID Range: 508±30mm.

Max Capacity:5 Tons

Straightened Device

Up to four down three total seven roll straightening device

Puncher device

Servo-drive,motor=2.3KW,feeding material.

63T Punching hole device, one set punching die

Main motor power of the puncher:5.5KW
