30-45m/Min 110 T High Speed Punching Shelf Holes Line CE ISO SGS

30-45m/min 110 T High Speed Punching Shelf Holes Line CE ISO SGS

Summarize:

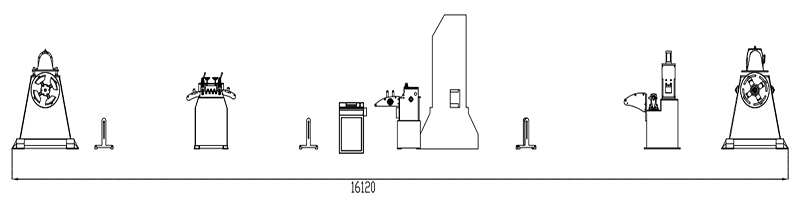

Profile drawing:

Machine Components

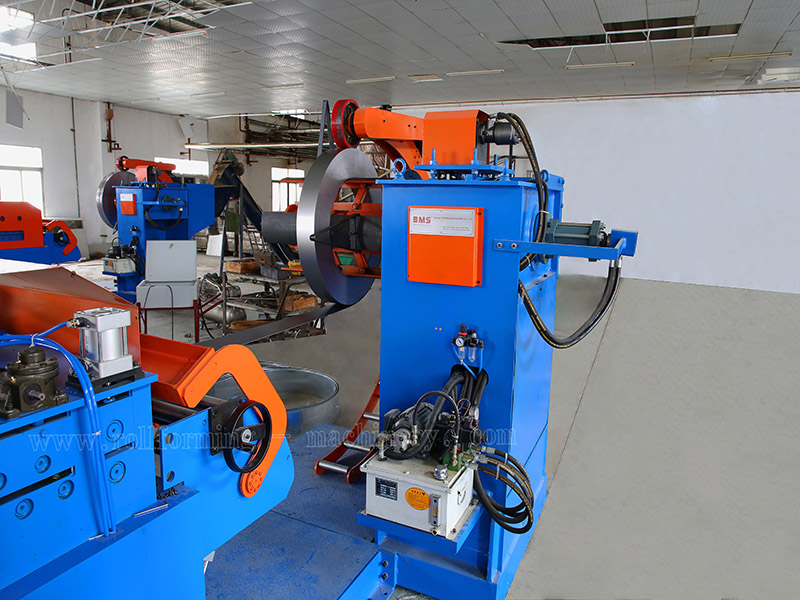

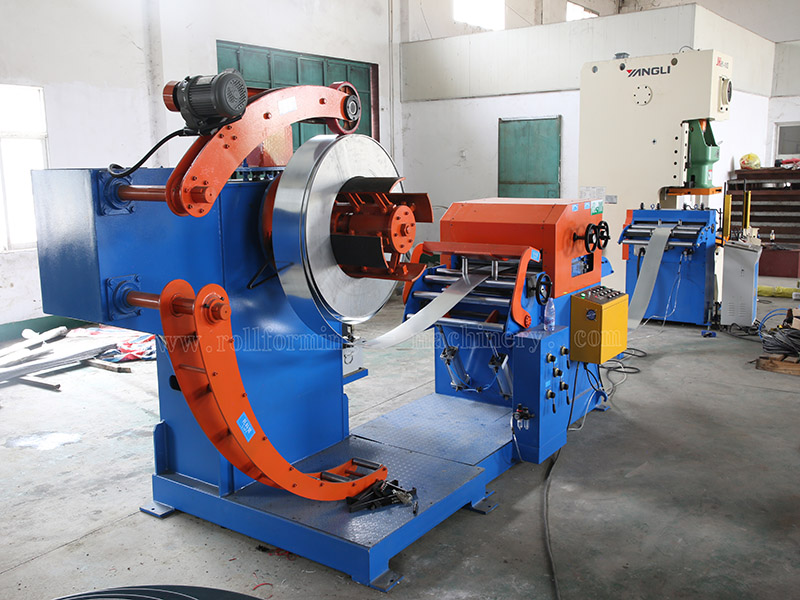

1) 5 T Hydraulic Decoiler:With Press Arm

Hydraulic System Expand Coil Inner Hole, Pump Motor:2.2KW
Hydraulic Valve:China Top Brand HUADE
Bearing:China Top Brand HRB
Chain: China Top Brand ZIQIANG
Frequency Inverter To Regulate Turning Speed, Motor:3KW
PLC Control System:
Inverter With Taiwan DELTA Brand
Contactor And Indication Lamp With Schneider Electric Brand
“Wedge Type Structure’’Expansion,Which Is Much Stronger And Has A Longer Service Life Than Normal “Pull-Rod Structure” Expansion Decoilers

Automatic Stopping Device,Load Capacity =Max.5 Tons
Coil Inner Diameter=508±30mm;Coil Width =Max.1600mm
All The Screw Bolts With Grade 8.8

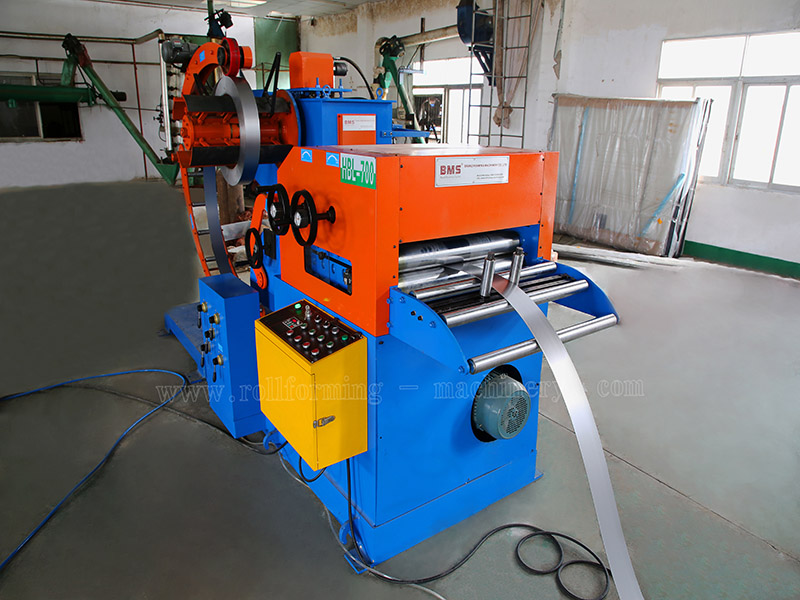

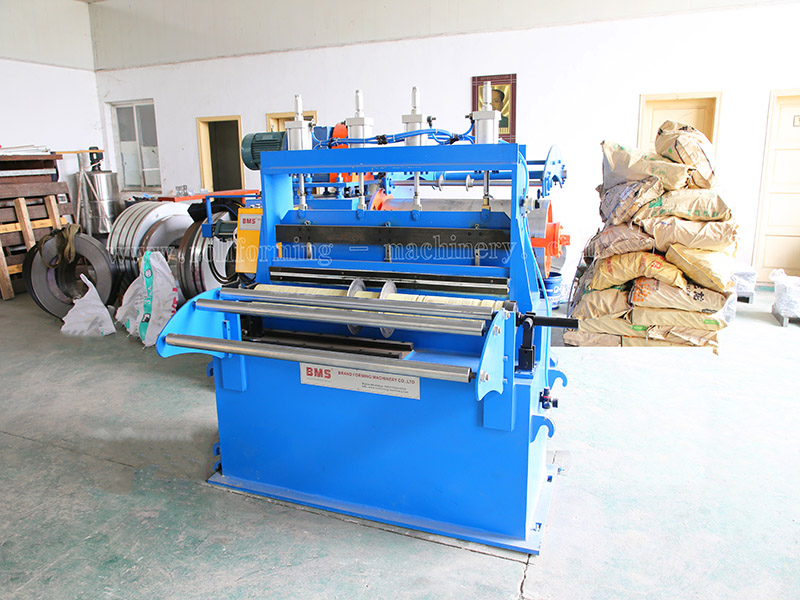

2) Leveling Device

With Feeding Material Guide And Leveling Device
Up Three Down Four Totally Seven Shafts Leveling Device
Body Frame Made From H Steel By Welding
Side Wall Thickness:Q235 t25mm
Shafts Manufactured From GCr15 Steel(=EN31 Steel),Diameter=Ø105mm
High Frequency,Heat Treatment And Quenching And Tempering
With Air Device To Adjust Distance Between Upper And Lower Shafts
With Hand WheelTo Adjust The Feeding Width
Motor Power:3.0KW

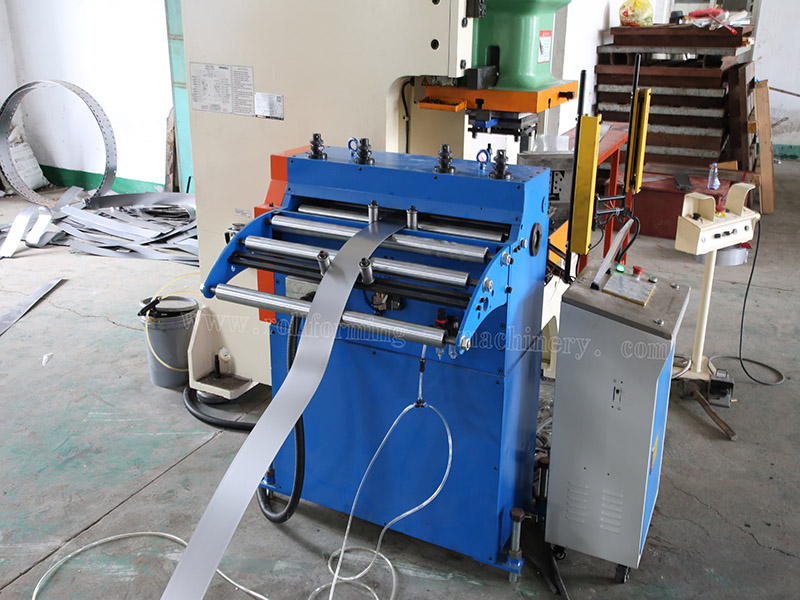

3) Servo Feeding Device

With Feeding Guide Device

With Servo Motor For More Accurate Feeding,Servo Motor:3.0KW
Material Feed Tolerance:≤±0.5mm

4) 110 T High Speed Punching Machine

110 T HIGH SPEED Punching Machine Equip With Punching Model
Punching Machine With Safety Cover
Punching Speed:75 Times Per Minute,Punching Motor:11KW
Punching Model Manufactured From Cr12MoV Steel(=SKD11 Steel)
Heat Treatment To HRC58-62 Degree

With PLC Control System

5) Straightener Device

6) 5 T Hydraulic Decoiler:With Press Arm

Packing Style

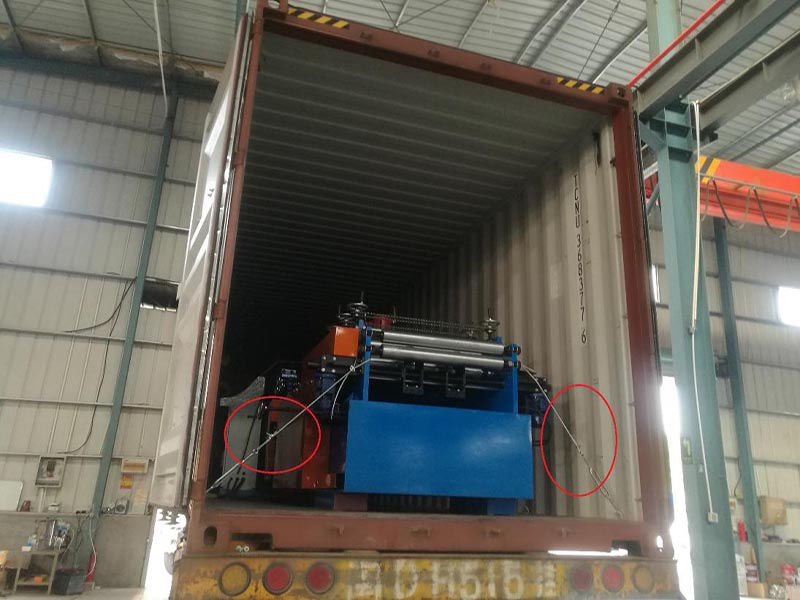

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, India,Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
