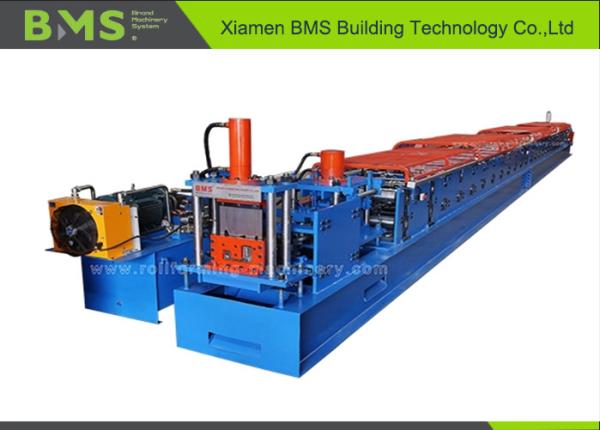

2.5mm-3.0mm Top Beam Roll Forming Machine For Container Room

Brand Name : BMS

Model Number : Container Room

Certification : CE/SGS/ISO9001

Place of Origin : Xiamen,China

MOQ : 1 Set

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 30set/month

Delivery Time : 45days

Packaging Details : The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.

Rolling thinckness : 2.5-3.0mm

Voltage : AC 3-318V/415V/440V

Post cutter : Cr12

Forming Speed : 15m/min

Forming station : 20-step

Shaft material : 45#

Housing : H450 beam

Condition : New

Contact Now

► Work Flow

Hydraulic Uncoiler (Self-Provided ) → Feeding Guide Device →Lubricant Device → Leveling Device → Roll Forming(Cold Water Device)→ Hydraulic Post Punching Device→ Hydraulic Post Cutting Device → Exit Rack*2

► Applications

Steel beam that produced by roll forming nowadays is widely used in container house system, which is more movable, reusable and modular building house.

► Material Details :

 	 			Term 			Specification 			Remarks
 			Leveling Device  			Thickness Of Wallboard 			Q235 t25mm 			Guide Roller: 45# Steel Material, Shaft Diameter φ118
Leveling Roller: 40 Cr Steel, Shaft Diameter φ95

 			Structure Of Wallboard: 			Integral Wall Panel
 			 			Roll Forming Mill 			 			Shaft Diameter 			φ 80/95 			Every Machine with Cold Water Device. Gear & Chain drive about 26-step to form.
Forming Speed: 15m/ min; Produced Speed: 10m/ min (Including punching and cutting time)
Main Motor: Double Servo Motors (22KW+22KW); Brand: Huichuan

 			Spacer  			20# Seamless Pipe, Plating Treatment
 			Rollers  			Bearing steel Gcr15, heat treatment HRC58-62 Degree
 			screw bolts 			8.8
 			PLC Control System 			Brand 			SIEMENS(German brandlnverter: DELTA(Taiwan brand)
 			Cut-to-length tolerances 			±2 mm
 			Control Voltage 			24V

► other details

Applicable Material: Galvanized Sheet Meterial Thickness: 2.5-3.0mm
Inspection Thickness: 3.0mm Material Strength:sgh340
The Length of Tolerance: ±1mm (12M)
The Material of Machine Testing: BMS Group will provide the feed size to demander for purching in two weeks before machine testing.

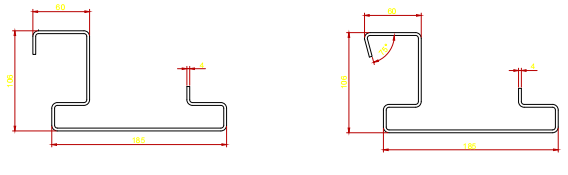

► Profile Drawing

►Pictures

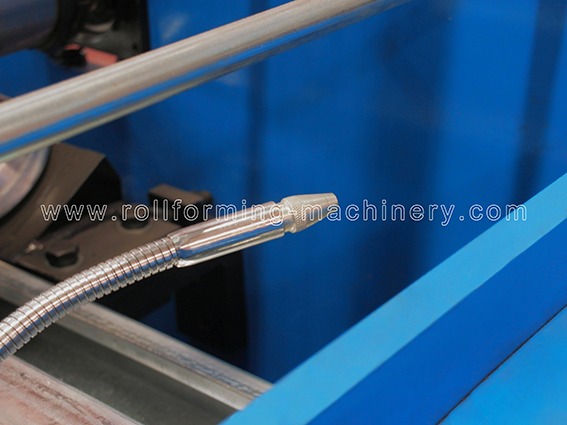

Cold Water Device
