Metal Steel Sheet Cut To Length And Slitting Line 25-35m/Min
1. The Features of the machine
- Cutting line for cutting flat rectangular blanks from main coils. For widths of up to 3000 mm, thicknesses of up to 25 mm and speeds of up to 150 m/min.
- The lines can be supplied with start-stop shears, flying shears, rotating shears or continuous direct feed. Air cushion, bomb-door type, electromagnetic or vacuum stackers. High-precision levellers of four, five and six heights, computer controlled. Edge trimming may be incorporated..
- Totally computer-controlled with diagnosis, automatic coil feed and quality control.
2. Material
Suitable Material thickness:0.5-2.0mm
Width:400,650,800,1000,1250,1300mm
Applicable material:Galvanized Sheet(GI),Pre-painted Galvanized Sheet(PPGI),
Cold Roll Steel(CRC),Hot Roll Steel(HRC)
With Yield Strength:235-550Mpa
3. Work Follow

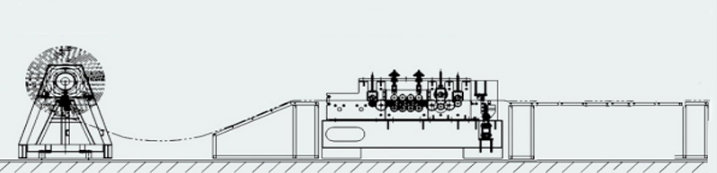

5 ton Hydraulic Decoiler - Feeding Guide - Leveling Device - Slitting Device - Hydraulic Post Cutting - Run Out Table
4. Product Parameters
| 1 | Power | 380V 50Hz |
| 2 | Speed | 25-35m/min |
| 3 | Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear |
| 4 | Shafts diameter | 100mm |
| 5 | Shaft material | 40Cr |
| 6 | Hydraulic motor | 5.5KW |
| 7 | Steel coil weight | 8T |
| 8 | Slitting Knife Material | Cr12MoV |
| 9 | Side wall Thickness | 40mm |
| 10 | Material Thickness | 0.5-2.0mm |
5. Main Components
1) Hydraulic Decoiler:One set
Hydraulic control steel coil inner bore shrinkage and stop
Max Feeding width:1250mm,coil ID range 508mm±30mm
Capacity:Max.7 Ton

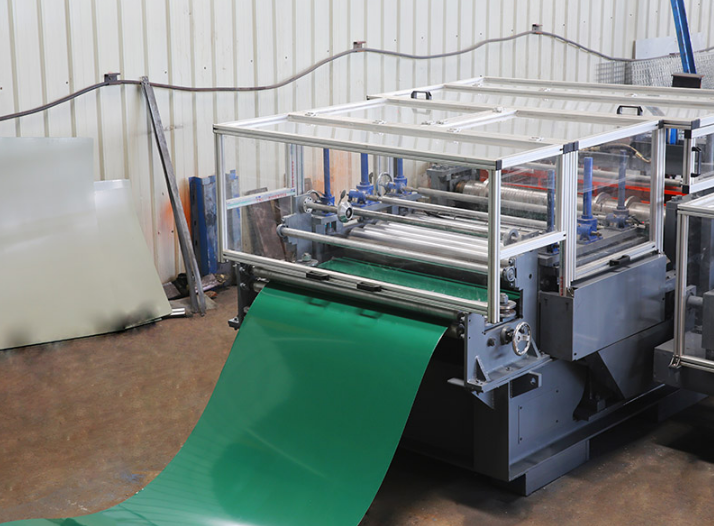

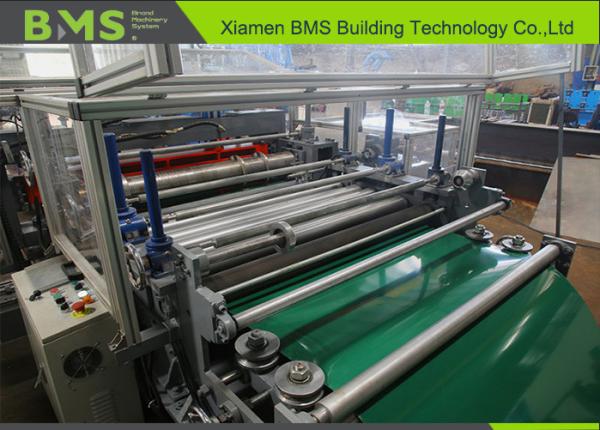

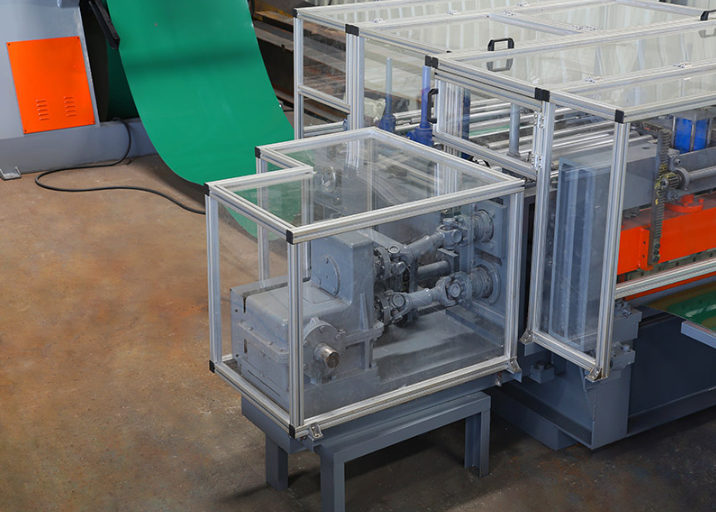

2)Main Machine
Up four down five totally nine shafts leveling device.
With Rubber Rolling Feeding Device,body frame made from H450 type steel by welding.
Side wall thickness :Q235 t40mm
Shafts manufactured from 40Cr steel,Diameter=φ100mm
High Frequency Heat Treatment

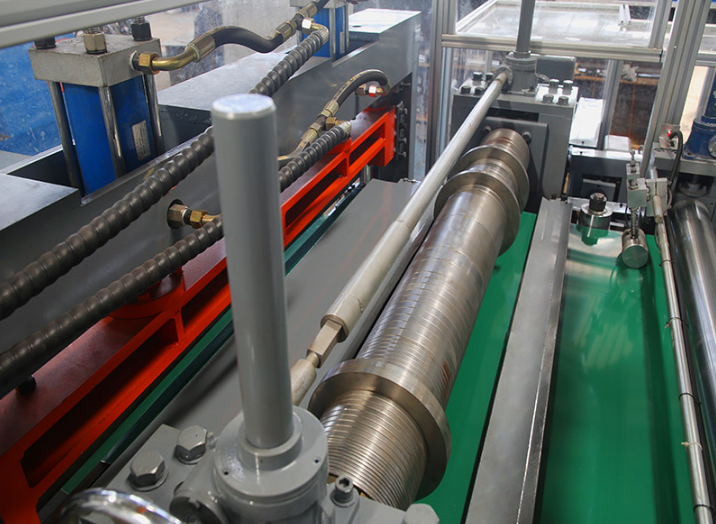

With Slitting Function(4 Slitter,Slitting Thickness:2mm)
Side Wall Thickness: Q235 t40mm
Slitting Shaft Manufactured From 40Cr Steel , Diameter=φ120mm
Slitting Knife Material Cr12MoV(=SKD11 Steel)
Heat Treatment To HRC58-62 Degree
With Rubber Rolling Feeding Device
With Leveling Function
With Slitting Function
With Shearing Function
Line speed:25-35m/minute
Main Machine Motor:7.5KW+5.5KW
With PLC Control System
| Combined With | PLC, Inverter, Touch Screen, Encoder, etc |
| PLC | Siemens (German brand)/Schneider(French brand) |
| Inverter | Siemens (German brand)/Schneider(French brand) |
| 7-Inch Color Touch Screen | Siemens (German brand)/Schneider(French brand) |
| Encoder | Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor |
| Thermal Relay | Siemens(German brand)/Schneider(French brand) |
| Air Switch | LG-LS(Korea brand)
Cut-to-Length Tolerance≤±1 mm
Control Voltage 24V |

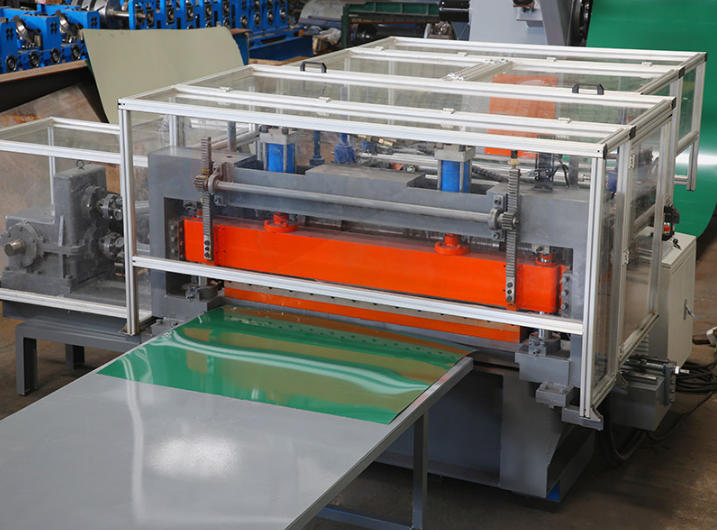

3)Post Hydraulic Cutting Device
Post to cut,stop to cutting,Two pieces type of cutting blade design,no blanking
Hydraulic motor:5.5KW,Cutting tool material: Cr12MoV(=SKD11 with at least one million times of cutting life),heat treatment to HRC 58-62 degree
The cutting power is provided by the main engine hydraulic station.

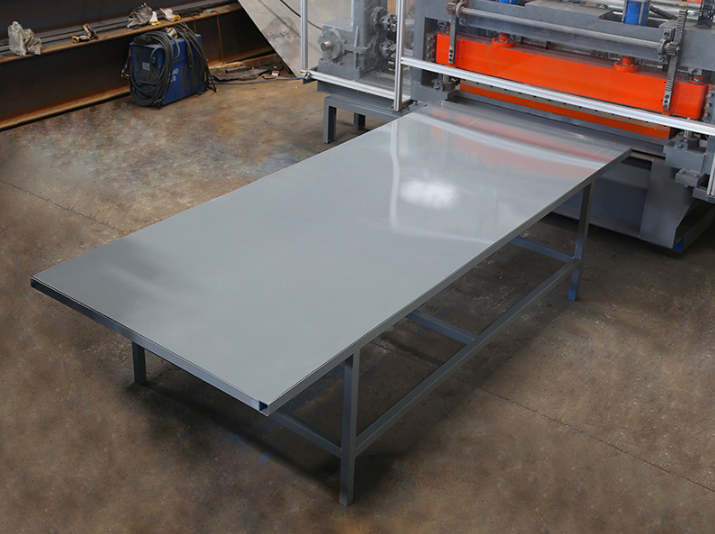

4) Exit Rack
Un-powered,one unit,with rollers on it for easy movement
6.Advatnges:
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
