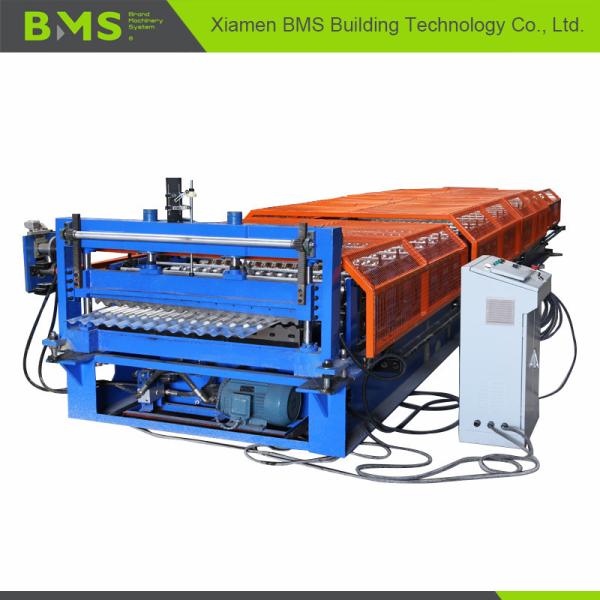

European Style Corrugated Roofing Tile Cold Roll Forming Machine 12-15m/min Output

Brand Name : BMS

Certification : ISO9001/CE/SGS

Place of Origin : Xiamen，China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50 Set/Sets per Month

Delivery Time : 45DAYS

Packaging Details : Nude Packing in The Container Suitable for Automatic Color Roof Cold Roll Forming Machine

Condition : New

Tile Type : Steel

Production Capacity : 12-15m/min

Working material : galvanized sheet(GI),cold roll steel(CRC)

Yield strength : 245-550MPa

Decoiler : Manual/Hydraulic for options

Housing : H400 beam

Forming station : 22

Cutter material : Cr12Mov, Heat treatment

Output : about 12-15meters per minute

After-sales Service Provided : Engineers available to service machinery overseas

Port : Xiamen

Thickness : 0.7-0.8mm

Contact Now

European Style Corrugated Roofing Tile Cold Roll Forming Machine 12-15m/min Output

1. Main features of European Style Corrugated Panel Roll Forming Machine

The advantages of European Style Corrugated Panel Roll Forming Machine are as follows:

1. With automatic stacker, Save labor and Save Time

2. With scrap cutting device to cut balance material so that the machine can work for different material width

3. Easy operation, low maintenance cost

3. Popular in the European market (like the UK).

2.Detailed Images of European Style Corrugated Panel Roll Forming Machine

Machine Parts

1) European Style Corrugated Panel Roll Forming Machine Automatic Stacker

Brand: BMS Original: China

2) European Style Corrugated Panel Roll Forming Machine Rollers

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

With Hard-Chrome Coating for long life.

With feeding material guide, Body frame made from 350# H type steel by welding

3) European Style Corrugated Panel Roll Forming Machine Post Cutter

Brand: BMS Original: China

Cutter frame made from high quality 20mm steel plate by welding

Post cut, stop to cutting, use the same hydraulic motor drive

Hydraulic motor: 3.7KW, Hydraulic pressure range: 0-12Mpa

Cutting tool material: mold steel Cr12, Heat treatment

4) European Style Corrugated Panel Roll Forming Machine Scrap Coiling System

Brand: BMS Original: China

Avoid wasting material

5) European Style Corrugated Panel Roll Forming Machine PLC Control Cabinet

WIth Aviation plug for easy operation

European Style Corrugated Panel Roll Forming Machine Decoiler

Brand: BMS Original: China

Hydraulic Decoiler with coil car and clamp arm: one set

Hydraulic control steel coil inner bore shrinkage and stop

Max. feeding width: 1500mm, coil ID range 470mm±30mm

Capacity: Max. 10 Tons
