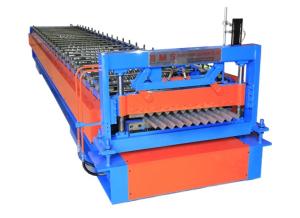

Customized Corrugated Sheet Roll Forming Machine , Corrugated Roof Making Machine

Brand Name : BMS

Model Number : YX18-75-975

Place of Origin : Xiamen，China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50sets/month

Packaging Details : Nude packing in the container suitable for long term transportation.

Certification : SGS/ISO9001/CE

Delivery Time : 60days

Working material : galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)

Thickness : 0.25-0.6mm

Yield strength : G350-G550Mpa

Decoiler : Manual/Hydraulic for options

Housing : H400 beam

cut-to-length tolerance : ±1mm

Shaft : 75mm

Forming station : About 22 stations

Cutter material : Cr12 Tool Steel

Roller material : Gcr15/Cr12/SKD11

Contact Now

corrugated roof making machine corrugated sheet roll forming machine corrugated panel machine

Product Application

This machine takes GI/PPGI as raw material, through a series of steps and can produce the barrel type roofing sheets.

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

TECHNICAL PARAMETERS FOR CORRUGATED PANEL ROLL FORMING MACHINE
Serial Number	Item	Parameters	Remark
Applicable material	Type	GI/PPGI
	Thickness	0.25-0.6MM
	Yield strength(Mpa)	G245-G550
Main performance parameters	Forming speed(M/MIN)	12-20M/MIN
	Machine size(L×W×H)	91.52	Refer to the machine
	Power supply(KW)	7.5+3.0	Motor and Hydraulic Motor
MACHINE COMPONENTS FOR CORRUGATED PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler	1 set	Capacity: Max. 5Ton, hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in the right position no Deviation.
	Precutting Device	1 set	Prevent the profile from being unbeautiful because of the rough material.
	Main Roll Forming Machine	1 set	About 22 steps, motor driving, and chain transmission. Wall plate structure.
3.Cutting system	Hydraulic Cutting Device		Precutting and post-cutting both.
4.Hydraulic system	Hydraulic Station	1 set	Providing the power of cutting.
5.Control system	PLC Control System	1 set	PLC control system, encoder positioning, and cut-to-length automatically, touch screen operating.
6.Racking system	Exit rack	3 PC	no power.

Main Features

1) We use Taiwan quality.

2) Adopting advanced world famous brand components in computer parts. Like Siemens, Schneider, Sony, etc.

3) Running in a high automatization and intellectualization,no pollution.

Product Tags:

roofing sheet roll forming machine

cold roll forming machine
